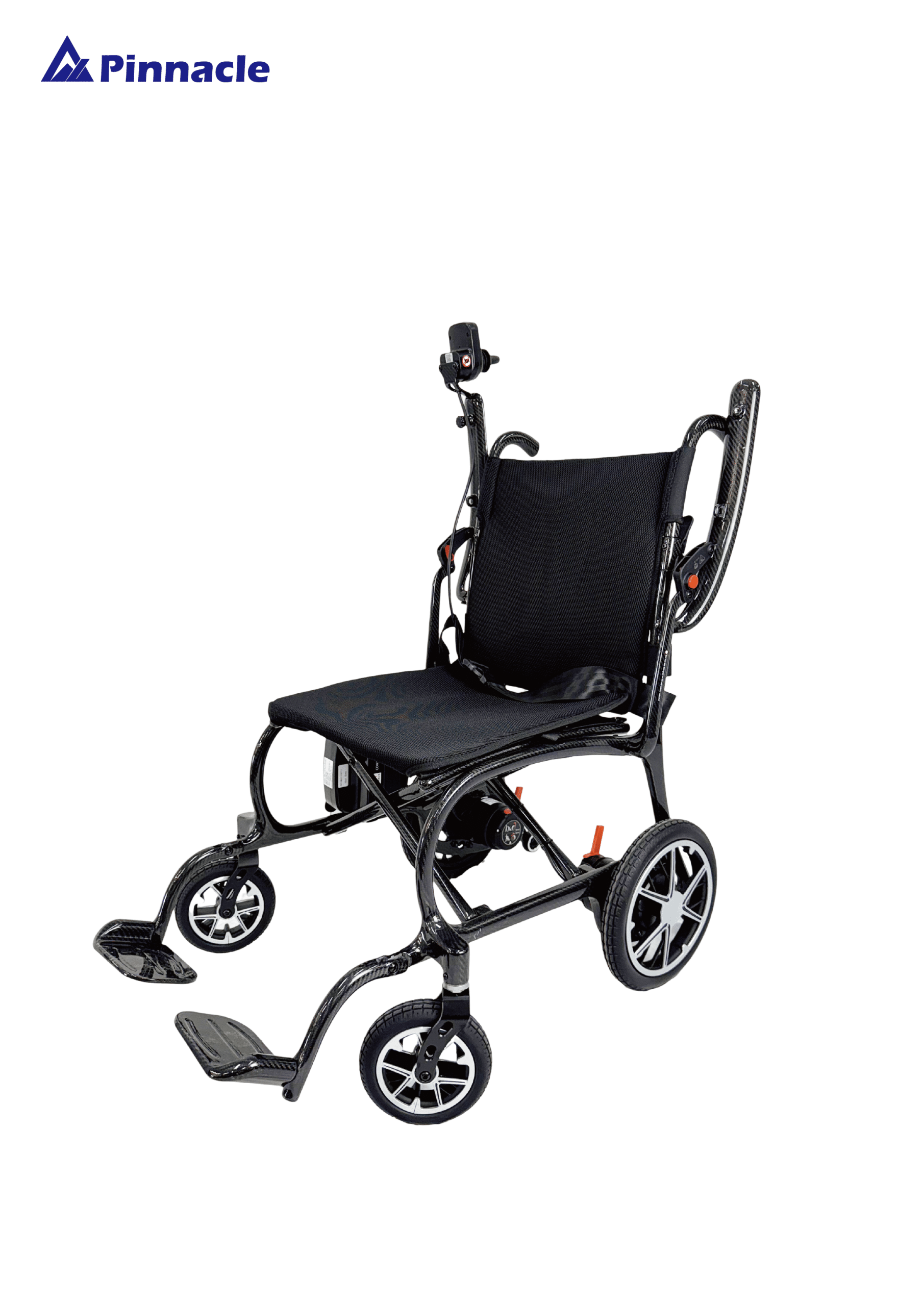

Pinnacle Featherlite Powered Wheelchair Gen 3
Pinnacle Featherlite Gen 3 is our latest ultra-lightweight carbon fibre power wheelchair, engineered for effortless mobility and everyday practicality. With a compact folding design, detachable battery, and durable brushless motors, it delivers reliable performance without the bulk. Strong yet lightweight, it’s built for travel, easy storage, and confident daily use — all while maintaining exceptional strength and stability.
Features:
• Full Carbon Fibre Frame
• 12 kg (without battery) / 13.5 kg (with battery) – One of the lightest power chairs in its class.
• 136 kg Weight Capacity

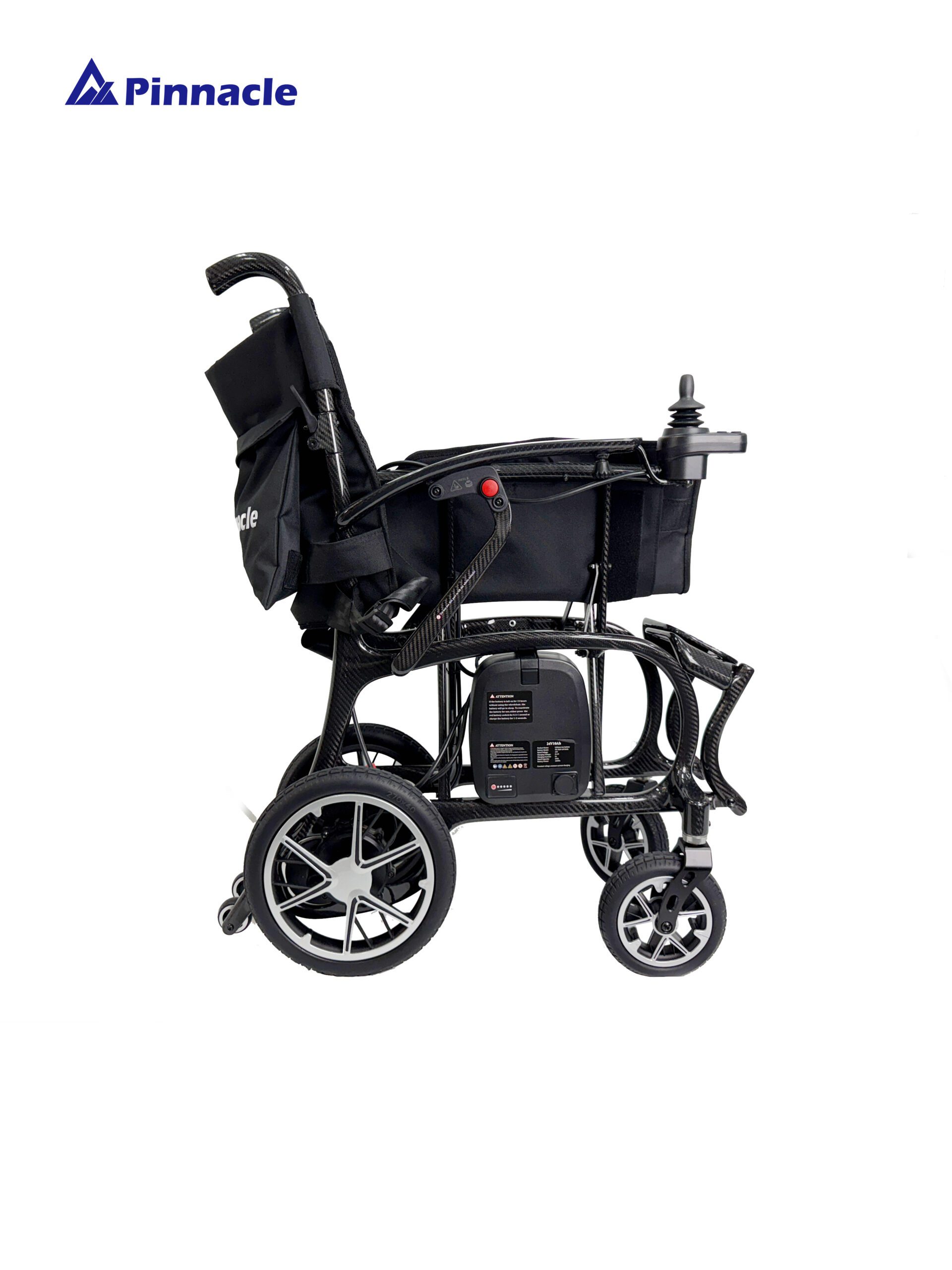

• Compact Folding Design
• Flip-Back Armrests & Foldable Backrest
• Detachable or Flip-Up Footrest
• Removable Battery System
• Multiple Battery Options
• Optional Wireless Remote & Rear Attendant Controller
• Optional Comfort Cushion Upgrade
Durability & Testing Standards
• 300,000 motor endurance test cycles under 136 kg load
• 300,000 frame fatigue test cycles under 136 kg load
• 220,000 backrest push test cycles
$3,499.00 inc GST
Out of stock
Description
Specifications:
Frame Material: Carbon Fibre
Overall Dimensions (L × W × H): 860 ±10 mm × 600 ±10 mm × 900 ±10 mm
Folded Dimensions (L × W × H): 630 ±10 mm × 260 ±10 mm × 700 ±10 mm
Seat Size (W × D): 430 ±10 mm × 400 ±10 mm
Seat Height (Front): 490 ±10 mm
Backrest Height: 400 ±10 mm
Armrest Height (Front): 360 ±10 mm
Footrest to Seat Distance: 420–445 ±10 mm
Wheel Size: 6.5” Front, 12” Rear
Turning Radius: ≤ 1800 mm
Obstacle Clearance: ≥ 25 mm
Ditch Crossing Width: 100 mm
Maximum Speed: ≤ 4.5 km/h
Driving Range: Up to 15 km
Climbing Capacity: ≥ 3°
Slope Stay Capacity: 6°
Static Stability: ≥ 6°
Dynamic Stability: ≥ 3°
Brake Distance (Horizontal): ≤ 1.0 m
Safe Slope Brake Distance: ≤ 1.6 m (3°)
Seat Plane Angle: 4° (Ergonomic)
Backrest Angle: 12°
Footrest Angle: 100°
Motor: 2 × 150W Brushless Motors (Electromagnetic Brake)
Battery: 24V 10Ah Lithium Battery
Net Weight: 13.7 kg
Key Part Weight: 11.5 kg
Maximum Load Capacity: 136 kg
